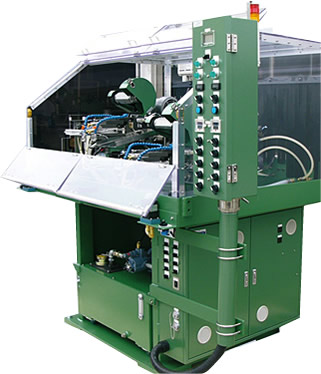

Precise
automatic
cutting
machine
ND10W2
|
 |
| Capacity | |
|---|---|
| Work dia. | 17 -19mm dia. shrinkage pipe |
| Work Number of shrinkage pipes |
Standard: Cutting of two shrinkage pipes (Single pipe cutting can be selectedwith the switch.) |
| Cutting length | Standard cutting <Upper side> (Double feed OFF) Cutting is possible from 15mm up to 150mm. <Lower side> (Work feed setting <<1>>) Cutting is possible from 15mm up to150mm Long work cutting <Upper side> (Double feed ON) Cutting is possible up to 180mm <Lower side> (Work feed setting <<2~9>> ) Cutting is possible up to 1300mm |
| Grinding wheel speed | 3000 rpm, 50Hz/60Hz (standard) |
| Cutting length accuracy | +/- 0.15mm |
This specification may be changed without a preliminary announcement for improvement
| Leading particulars | |
|---|---|
| Grindstone size | O.D.: 205 - 150mm |
| Hole dia.: 25.4mm | |
| Thickness: 0.35mm or more | |
| Grindstone flange dia | 70mm, 60mm, 50mm (Standard: 60mm) |
| Grinding wheel spindle motor | 0.75kW -2P-200V, 50Hz/60Hz |
| Trochoid pump | 0.75kW -2P-200V, 50Hz/60Hz (Max. working pressure: 8kg/cm2) |
| Coolant pump | 0.4kW-4P-200V, 50Hz/60Hz |
| Separator | 1.5kW-4P-200V, 50Hz/60Hz |
| Hydraulic oil tank capacity | 100liters |
| Coolant tank capacity | 230liters |
| Machine weight | Approx. 1400kg |
| Machine dimensions | Width: 1810mm Depth: 1400mm Height: 1750mm |
Purpose
The machine is intended to automatically cut stainless pipes quickly and accurately in large quantities.
Features
1. The variation in cutting size is extremely small, or +/- 0.15mm
2. High throughput
3. Easy maintenance and inspection
